KB Foam – Insulated Containers

Insulated Containers

Expanded polystyrene containers are well known to be the best choice to transport temperature sensitive products and perishables around the world. Due to their great thermal and insulation properties, EPS containers are perfect for shipping biomedical and pharmaceutical samples. EPS coolers are water resistant, light weight and strong; ideal for shipping seafood, agricultural products and frozen products. Please let us know your needs, so we can tailor and design the right cooler for your product.

Our Boxes

IPD

Density: 1.25pcf (Base and Lid)
20g/L (50 Times)
24set/bag

Tolerance	mm	Inch	Inch fractions
Length	±2	±0.078	±5/64
Wigth	±2	±0.078	±5/64
Height	±2	±0.078	±5/64

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	260	211	208	195	145	139	30
Inches / Decimal	10.2	8.3	8.2	7.7	5.7	5.5	1.2
Inches / Fractions	10 1/4	8 5/16	8 3/16	7 11/16	5 11/16	5 1/2	1 3/16

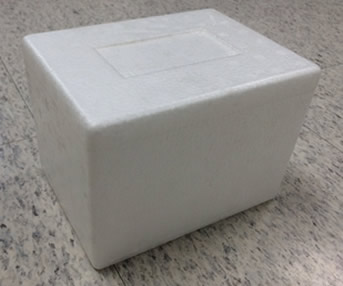

OWL

Density: 1.25pcf(Base and Lid)
20g/L (50 Times)
Hybrid Type Material
96set/bag

Tolerance	mm	Inch	Inch fractions
Length	±2	±0.078	±5/64
Wigth	±2	±0.078	±5/64
Height	±2	±0.078	±5/64

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	202	152	152	152	102	98	25
Inches / Decimal	8.0	6.0	6.0	6.0	4.0	3.9	1.0
Inches / Fractions	8	6	6	6	4	4	1

KBF001

Density: 2.0pcf(Base and Lid)
32g/L (31 Times)
24set/bag

Tolerance	mm	Inch	Inch fractions
Length	±2	±0.078	±5/64
Wigth	±2	±0.078	±5/64
Height	±2	±0.078	±5/64

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	324	213	152	275	179	195	17
Inches / Decimal	12.8	8.4	9.2	10.8	7.1	7.7	0.7
Inches / Fractions	12 4/5	8 2/5	9 1/5	10 4/5	7	7 5/7	2/3

KBF002

Density: 1.0pcf(Base and Lid)
16.7g/L (60 Times)
3set/bag

Tolerance	mm	Inch	Inch fractions
Length	±5	±0.203	±13/64
Wigth	±4	±0.156	±5/32
Height	±3	±0.125	±1/8

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	1370	381	367	1270	281	269	50
Inches / Decimal	53.7	15.0	14.4	49.8	11.0	10.6	2.0
Inches / Fractions	53 3/4	15	14 4/9	49 5/6	11	10 3/5	2

KBF003

Density: 1.25pcf (Base and Lid)
20g/L (50 Times)
48set/bag

Tolerance	mm	Inch	Inch fractions
Length	±2	±0.078	±5/64
Wigth	±2	±0.078	±5/64
Height	±2	±0.078	±5/64

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	305	203	199	243	141	138	30
Inches / Decimal	12.0	8.0	7.8	9.6	5.6	5.4	1.2
Inches / Fractions	12	8	7 4/5	9 4/7	5 4/7	5 3/7	1 1/5

KBF004 UNI

Density: 1.25pcf (Base and Lid)
20g/L (50 Times)
12 BOX/bag
36 LID/bag

Tolerance	mm	Inch	Inch fractions
Length	±2	±0.078	±5/64
Wigth	±2	±0.078	±5/64
Height	±2	±0.078	±5/64

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	463	401	361	403	225	306	38 \| 30
Inches / Decimal	18.2	15.8	14.2	15.9	8.9	12	1.5 \| 1.2
Inches / Fractions	18 1/4	15 3/4	14 3/16	15 4/5	8 4/5	12	1 1/2 \| 1 3/16

KBF005

Density: 1.25pcf (Base and Lid)
20g/L (50 Times)
24set/bag

Tolerance	mm	Inch	Inch fractions
Length	±2	±0.078	±5/64
Wigth	±2	±0.078	±5/64
Height	±2	±0.078	±5/64

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	405	270	233	367	232	178	19
Inches / Decimal	16.0	10.6	9.2	14.4	9.1	7.0	0.7
Inches / Fractions	16	10 5/8	9 1/6	14 4/9	9 1/7	7	3/4

KBF006 BIG TUNA

Density: 1.135pcf (Base and Lid)
18.2g/L (55 Times)
2set/bag

Tolerance	mm	Inch	Inch fractions
Length	±5	±0.203	±13/64
Wigth	±4	±0.156	±5/32
Height	±3	±0.125	±1/8

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	1489	552	456	1396	451	370	45
Inches / Decimal	58.6	21.7	18.0	55.0	17.8	14.6	1.8
Inches / Fractions	58 4/7	21 11/16	18	55	17 4/5	14 4/7	1 4/5

KBF007

Density: 1.25pcf (Base and Lid)
20g/L (50 Times)
12set/bag

Tolerance	mm	Inch	Inch fractions
Length	±2	±0.078	±5/64
Wigth	±2	±0.078	±5/64
Height	±2	±0.078	±5/64

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	468	368	219	417	317	159	25
Inches / Decimal	18.4	14.5	8.6	16.4	12.5	6.3	1.0
Inches / Fractions	18 4/9	14 1/2	8 5/8	16 4/9	12 1/2	6 1/4	1

KBF008

Density: 1.13pcf (Base and Lid)
18.2g/L (55 Times)
2set/bag

Tolerance	mm	Inch	Inch fractions
Length	±5	±0.203	±13/64
Wigth	±4	±0.156	±5/32
Height	±3	±0.125	±1/8

DIMENSIONS	Outside Dimension			Inside Dimension			Wall thickness
	Length	Width	Height	Length	Width	Height	Wall thickness
Millimeters	1665	545	500	1554	455	417	44.5-51
Inches / Decimal	65.5	21.4	19.6	61.1	17.9	16.4	1.7-2
Inches / Fractions	65 1/2	21 2/5	19 3/5	61 1/9	17 8/9	16 2/5	1 2/3-2
